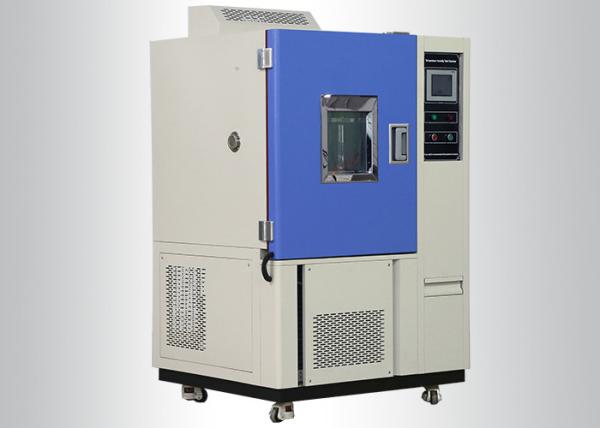

Constant Temperature Humidity Test Equipment,Temperature Controlled
Chamber 225 Liter
Description of Temperature Humidity Test Equipment
Constant Temperature Humidity Test Equipment,Temperature Controlled
Chamber. Our temperature and humidity test chambers are available in a
variety of sizes and configurations, including benchtop / vertical/
walk in constant temperature humidity chambers. Temperature Range:
-70°C to +180°C; Humidity range:10% to 98%R.H.
Application of Temperature Humidity Test Equipment
Constant Temperature Humidity Test Equipment,Temperature Controlled
Chamber,Equipment for testing the performance of materials in various
environments and testing various materials for heat, cold, dry and
moisture resistance. Suitable for the quality of electronic,
electrical, mobile, communications, instrumentation, vehicles,
plastic products, metal, food, chemicals, building materials,
medical, aerospace and other products.
Temperature Humidity Test Equipment Box Body Material
| 1 | The inner liner is imported high quality mirror stainless steel
plate (SUS304).
|
| 2 | The shell is made of high-quality A3 steel CNC machine tool
forming, the surface of the shell is sprayed, more beautiful and
beautiful, static protection.
|
| 3 | The insulation material is made of polyurethane foam (10cm).
|
| 4 | 4The observation box observation window adopts multi-layer hollow
tempered glass, with built-in illumination lamp, and the inner
glued sheet type conductive film is heated and defrosted to clearly
observe the test process
|
| 5 | Double-layer high temperature and high temperature sealing strip is
used between the door and the box to ensure the sealing of the test
area.
|
| 6 | The bottom of the machine is made of high-quality fixed PU movable
wheel for easy movement.
|
| 7 | One side of the box is equipped with a Φ50mm test hole for external
test power or signal line. The aperture or hole number needs to be
increased.
|
Product Highlights of Temperature Humidity Test Equipment
| Safety protection | External material A3 steel plate(4 mm), galvanized coating( 0.2
mm),Prevent static electricity,more safe.
|
| Easy Operation | Programmable color display touch screen controller.
Flexible approach for data collection and recording(RS-232 /RS-485
interface, PC Link, LAN,network,USB,Mobile APP)
|
| Free of Charge | 2 pieces of adjustable and removable shelves
Video tutorial,testing software,etc.
|
| After-sales Service | 3 Years Warranty,Lifelong Follow-up Services,engineers on site service,Until the
problem is solved
|
Main Technical Parameter
product size
| Model | TH-500 |
| Internal dimension (mm) | 700*800*900 |
| Overall dimension (mm) | 1180*1350*2010 |
Temperature and Humidity
| Temperature range | -20ºC ~+150 ºC |
| Temperature fluctuations | ± 0.5 ºC |
| Temperature deviation | ± 2.0 ºC |
| Temperature Resolution | ± 0.001 ºC |
| Humidity range | 20% ~ 98% RH |
| Humidity deviation | ± 2.5% RH |
| Humidity Resolution | ± 1%RH |
| Heating rate | 3 ºC / min |
| Cooling rate | 1 ºC / min |
Product Details
| Controller | programmable color display touch screen controller |
| PC Link with software, R-232 interface |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Humidity sensor | Dry and wet bulb sensor |
| Heating system | Independent Nichrome electronic heating system |
| Cooling system | French TECUMSEH compressor |
| Humidification system | External isolation, stainless steel surface evaporation humidifier |
| Dehumidification system | Evaporator |
| Water supply system | Automatic water supply, Water purification system, Water saving |
| Circulatory system | Cold resistance and low noise centrifugal wind wheel |
| Exterior material | Steel Plate with protective coating |
| Interior material | SUS304 stainless steel |
| Insulation window | Double thermo stability silicone rubber sealing |
| Standard configuration | 1 Cable hole (Φ 50,) cover, 2 sets of shelf, 2 protector tubes, 1
overflow water tube,1 copy of operating specification |
| Timing Function | 0.1~999.9 (S,M,H) settable |
| Power Supply | AC220V 50HZ |
| Ambient Temperature | 5ºC~+40 ºC ≤85% RH |
Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Key Features of Temperature Humidity Test Equipment
Temperature control and display unit
Humidity control and display unit
French TECUMSEH compressor cooling unit
Environment friendly refrigerant R404A & R23
Humidification system with external isolation, stainless steel
surface evaporation humidifier
Heating element is Nichrome heater
Circulation with low noise centrifugal wind fan
Temperature sensor PT-100 , Resolution: ± 0.001 ℃
Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
Build- in water reservoir
Programmable color LCD touch screen controller
Viewing window with interior lighting.
Test hole with silicone screw plug.
2 pieces of adjustable and removable mesh shelving.
Bottom install 4 castors for ease moving, and with brakes function
R-232 (R-485) interface, PC Link, communication with LAN network
interface
Programs reach to 999 groups and 999 sections
Safety protection system
Interior material is high quality SUS304 stainless steel
Exterior material is steel plate with protective coating
Thermal insulation is Polyurethane foam
Automatic water supply, water purification system
Silicon seal for door
Can perform long time 85 °C/85 % RH tests
380V, 50Hz +/- 10% , three-phase-five-wire system
Automatic Water Supply Inlet
Design and Construction of Temperature Humidity Test Equipment
Test Area
Material of the test cabinet is high quality SUS304 stainless
steel.
Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.
Temperature sensor Pt100 platinum
Humidity sensor dry and wet bulb
2 pieces of adjustable and removable shelves
Air Circulation
3 Air circulation fans in the workroom of the chamber.
The real wall of test area equipped with chip-type wind board.
Air flowing from top of wind board which control air direction
return to air inlet to achieve air circulation.
Cooling System
Mechanical compression refrigeration system
Refrigerating unit is French TECUMSEH compressor.
Two cascade compressor
Environment friendly refrigerant R404a for first stage,
R23 for the second stage
Humidity System
External isolation, stainless steel surface evaporation humidifier
Automatic water supply
Control Panel
PLC controller
Programmable color display touch screen controller.
Programs reach to 999 groups and 999 sections
RS-232 /RS-485 interface, PC Link, LAN network
Packing & Shipping
- Export Standard Wooden Box
- Can be used for Sea, Air, Railway, Truck transportation
- Package size: 2.55CBM, gross weight: 310kg
