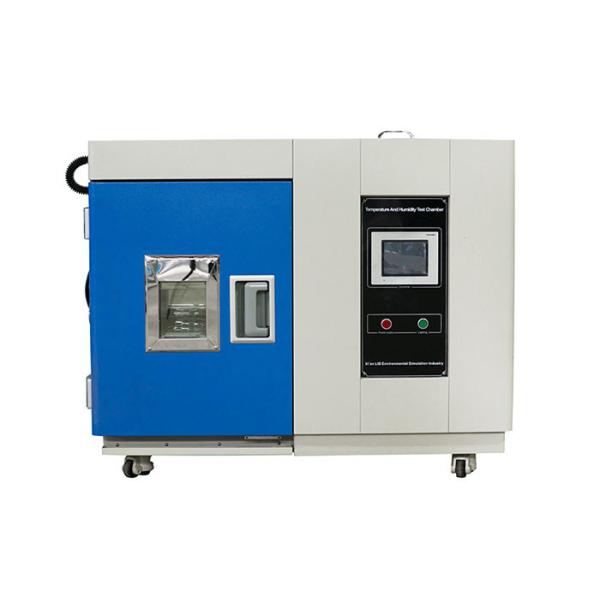

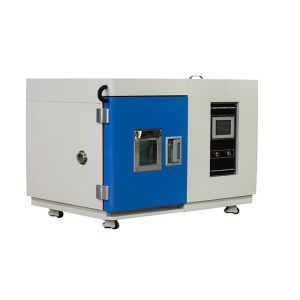

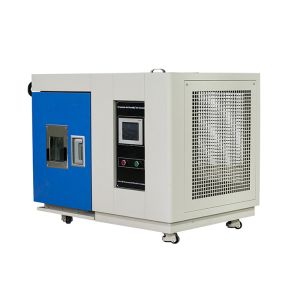

30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber

    Buy cheap 30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber from wholesalers

    Buy cheap 30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber from wholesalers
    • Buy cheap 30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber from wholesalers
    • Buy cheap 30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber from wholesalers
    • Buy cheap 30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber from wholesalers
    • Buy cheap 30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber from wholesalers

    30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber

    Ask Lasest Price
    Brand Name : LIB
    Model Number : TH-50
    Certification : CE
    Price :
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 190Sets/ Quarter
    Delivery Time : 3-10 days
    • Product Details
    • Company Profile

    30L 50L Portable Benchtop Environmental Chamber Small Temperature Chamber

    30L 50L Small Portable Air Cool Constant Temperature Humidity Benchtop Climatic Test Chamber


    Description of Temperature Humidity Benchtop Climatic Test Chamber

    30L 50L Small Portable Air Cool Constant Temperature Humidity Benchtop Climatic Test Chamber is a Small, bench-top test chamber for simulating temperature and humidity environments. Included only temperature, temperature and humidity test chambers. Widely used in electronics, automotive, manufacturing, research and laboratories. It's very good advantages are small, desktop, small footprint, portable, stable performance, and Full function. A Benchtop Environmental Chamber offers flexibility, uniformity, and control accuracy. Small & Affordable.


    Advantage of Temperature Humidity Benchtop Climatic Test Chamber

    *Small, portable, benchtop design

    *Wide temperature ranges and volume selection

    *CE mark, ISO17025 calibration


    Main Technical Parameter of Temperature Humidity Benchtop Climatic Test Chamber

    ModelTH-50TH-80
    Internal Dimension (mm)320*350*450400*400*500
    Overall Dimension (mm)800*1050*950900*1100*1000
    Interior Volume50L80L
    Heat load1000W
    ParameterTemperature Range

    A : -20℃ ~ +150 ℃

    B : -40℃ ~ +150 ℃

    C: -70℃ ~ +150 ℃

    Temperature Fluctuation± 0.5 ℃
    Temperature Deviation± 2.0 ℃
    Humidity Range20% ~ 98% RH
    Humidity Deviation± 2.5% RH
    Cooling Rate1 ℃ / min
    Heating Rate3 ℃ / min
    StructureCoolingCooling systemMechanical compression refrigeration system
    Refrigerating unitFrench TECUMSEH compressor
    RefrigerantR404A, R23
    Heating ElementNichrome heater
    ControllerProgrammable color LCD touch screen controller
    Ethernet connection, PC Link
    HumidityHumidifierExternal isolation, stainless steel surface evaporation humidifier
    DehumidificationEvaporator
    SensorTemperature SensorPTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
    Humidity SensorDry and wet bulb sensor
    Build-in Water Tank(mm)150*350*180
    View Window Size(mm)120*150
    Air CirculationCentrifugal wind fan
    Safety Device

    Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection;

    Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection

    MaterialExterior MaterialSteel Plate with protective coating
    Interior MaterialSUS304 stainless steel
    Thermal InsulationPolyurethane foam and insulation cotton
    Observation WindowInterior lighting, double-layer thermo stability silicone rubber sealing
    Standard Configuration1 Cable hole (Φ 50,) with plug; 2 shelves
    Power Supply220V 50Hz / 380V 50Hz
    Maximum Noise65 dBA
    Environmental Conditional5℃~+35 ℃ ≤85% RH

    Structures of Temperature Humidity Benchtop Climatic Test Chamber


    Cable Hole:

    A standard test hole, located at the left side of the workroom, is provided with a sleeve inside to prevent moisture from entering the insulation layer. Equipped with flange. The standard inner hole diameter is 50mm. Soft silicone plug seal; Metal enclosure closed, beautiful designed.

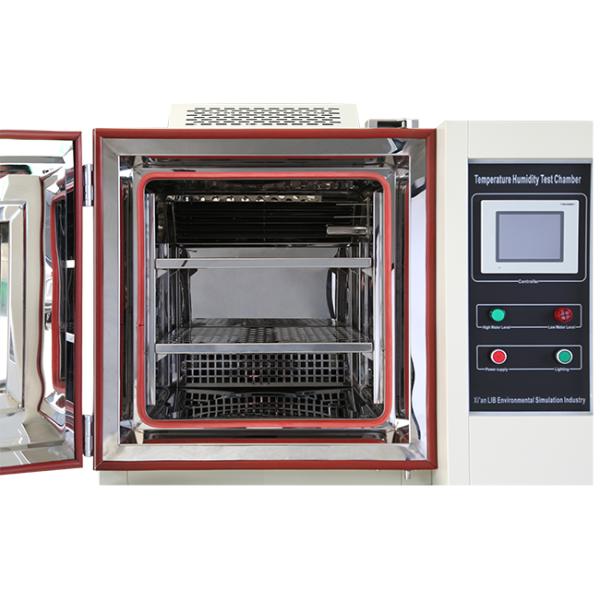

    Work Room:

    The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; Nice ruggedness and long life.



    Temperature and Humidity Sensor:

    PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.
    A wet gauze and a real-time temperature, converted by temperature difference, showing real-time relative humidity.


    FAQ

    Q: What are the payment methods?
    -- Payment methods are T/T, Paypal, L/C, VISA, D/A, D/P, Western Union, MoneyGram


    Q: Can you ship quickly?
    -- Our delivery period is 3-7 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.


    Q: How long is the warranty period?
    -- Warranty period is 3 years, free service for life.


    Q: Is there a door to door service?
    -- Yes, there is the door to door service. We will arrange a one-stop solution.


    Q: How do you calibrate the equipment?
    --We have our own calibration and third-party calibration such as ISO17025.


    Q: What are the modes of transportation?
    - Air, sea, rail, multimodal transport.


    Q: Can I install and debug calibration on-site?
    -- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
